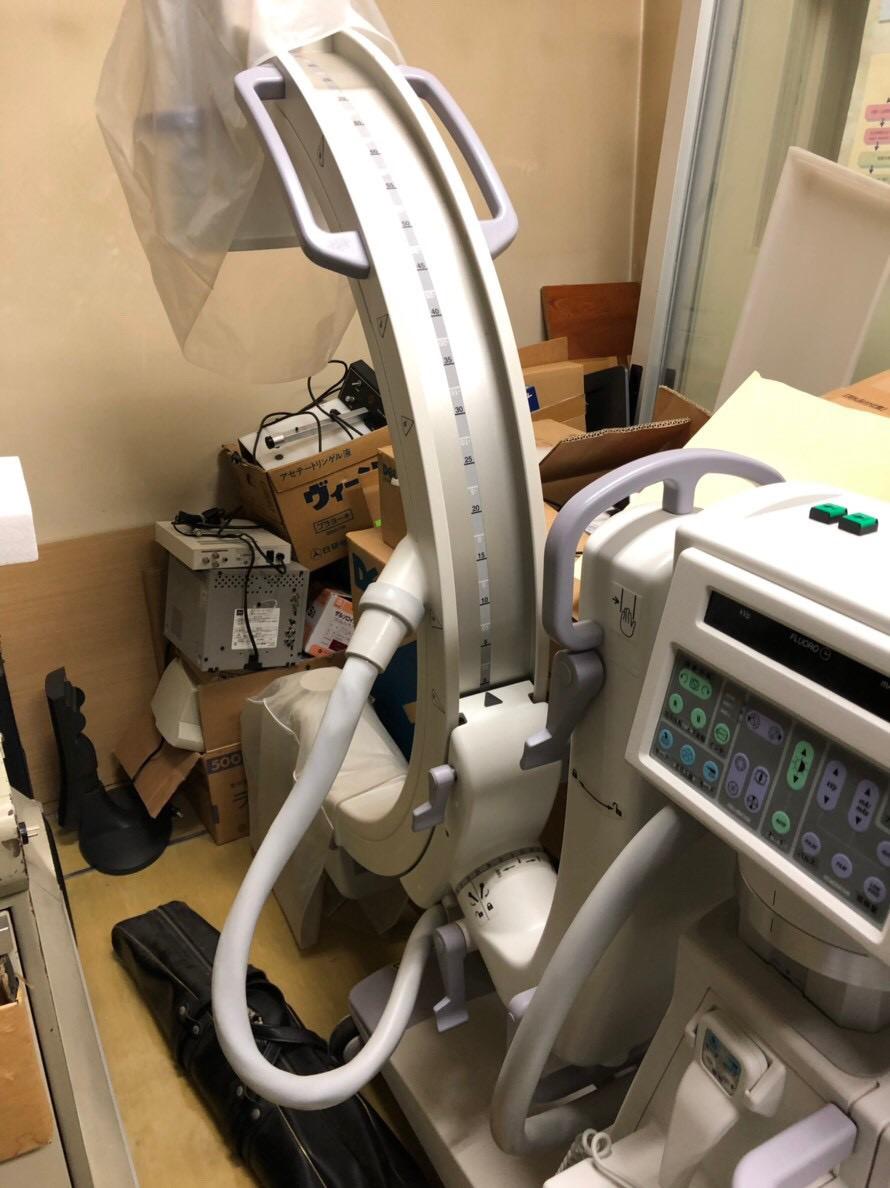

OEC 9900

Description

Generator

• 60kHz high frequency
• 15kW power
• Up to 120kVp
• Up to 75mA for radiographic film exposure
• Continuous high level fluoro (HLF) up to 20mA
• Digital spot up to 75mA
• Digital cine pulse
  • 15 or 30 pulses per second, 60 Hz
  • 12 or 25 pulses per second, 50 Hz
  • Up to 150mA
  • 10ms pulse width
• Full powerfrom standard wall outlet
• Patented battery buffered design

X-ray Tube

• Rotating anode X-ray tube
• 0.3 and 0.6 nominal focal spots
• Anode heat capacity: 300,000 HU
• Anode cooling rate: 85,000 HU/min.
• Housing heat capacity: 1,600,000 HU
• Housing cooling rate:
  • 9” I.I. Super C- 22,500 HU/min
  • 12” I.I. – 22,500 HU/min

Digital Image Rotation

• Digitally adjusts image display
• Automatic image update
  • Image rotation
  • Image reversal (side-to-side)
  • Image invert (top-to-bottom)
• Image positioning without additional exposure

Preview Collimator

• On-screen collimator position indication
• PreView iris collimator
• PreView Tungsten rotatable double leaf collimator
• Adjusts collimators without X-ray exposure

Fluoro Mode

• kVp range: 40 -120
• mA range:
  • 0.2 – 10 normal mode
  • 1.0 – 20 HLF (high level fluoro)
• Auto and manual fluoro modes
• AutoTrak ABS varies mA, kVp, camera gain

Pulsed Fluoro Mode

• kVp range: 40 – 120
• mA range: 0.2 – 10
• Pulse rate: 1, 2, 4, 8
• Pulse width: 25 or 50ms
• AutoTrak ABS, mA, kVp, camera gain
• Reduces X-ray dose to patient and operator

High Level Pulsed Fluoro

• kVp range: 40 – 120
• mA range: 1 – 40
• Pulse rate: 1, 2, 4, 8
• Pulse width: 25 or 50ms
• AutoTrak ABS, mA, kVp, and camera gain

Digital Spot Mode

• kVp range: 40 – 120
• mA range: Up to 75
• Automatic exposure termination and automatic image save

Radiographic Mode

• mA range: up to 75
• mAs range: up to 300
• Computer controlled exposure time
• Optional film cassette holder
  • 10” x 12” (24cm x 30cm) for 9” I.I.
  • 14” x 14” (35cm x 35cm) for 12” I.I.

Video Imaging System

9″ Image Intensifier

• Tri-mode 9”/6”/4.5” (23cm/15cm/11cm) image intensifier
• Minimum central resolution (at monitor):
  • 9” (23cm): 2.2 lp/mm
  • 6” (15cm): 3.0 lp/mm
  • 4.5” (11cm): 3.5 lp/mm
• DQE: 65% (typical)

12″ Image Intensifier

• Tri-mode 12”/9”/6” (31cm/23cm/15cm) image intensifier
• Minimum central resolution (at monitor):
  • 12” (23cm): 1.6 lp/mm
  • 9” (15cm): 2.2 lp/mm
  • 6” (11cm): 2.6 lp/mm
• DQE: 65% (typical)

Precision Imaging with Dynamic Range Management (DRM)

• Preset Imaging Profile: Orthopedic
• Enhances features of interest while attenuating background noise

AutoTrak Automatic Brightness Stabilization (ABS)

• Automatically seeks the subject anatomy anywhere within the imaging field and selects the optimum imaging technique
• Automatically adjusts to anatomical size and location
• Provides uniform image quality throughout the entire image
• Simplifies operation

Image Quality Features

• Smart Window
  • Dynamically senses the collimator position and automatically adjusts brightness and contrast to produce high image quality
• Smart Metal
  • Allows user to adjust automatic brightness and contrast sensitivity levels to metal
  • Provides optimum image quality even when metal is introduced to the field
• Tungsten Collimator
  • Dense collimator limits X-ray exposure area
  • Reduces scatter radiation
  • mproves image detail

Video Camera

• High resolution 1k x 1k CCD camera
• Full frame capture
• Motorized rotation
• On-screen orientation indicator (real-time feedback without fluoro)
• Left-right image reversal
• Top-bottom image invert

Video Display

• Dual 19” (48cm) display anti-glare, LCD flat panel monitors mounted on an articulating arm
  • 22” horizontal travel
  • 7° up/10° down
  • Monitors viewable from all four sides of workstation
  • Horizontal and vertical viewing angle 170°
• 1200 CD/M2 maximum brightness
• Touch screen system control
• 1280 x 1024 high resolution monitors
• Integrated color monitor for display of VGA, DVI, DVI-D, S-VHS, and SDISD formats
